WeatherKing By Rheem – 2 Ton Air Conditioner + 14″ Coil Kit

TCF Coil

Features

WeatherKing® Indoor Furnace cased coils and replacement uncased coils are designed for use with WeatherKing outdoor units and are available for vertical upflow or downflow, and horizontal left or horizontal right airflow. When matched with WeatherKing outdoor units, the coils provide a nominal capacity range from 18,000 BTU/HR [5.24 kW] to 60,000 BTU/HR [17.6 kW].
Constructed of aluminum fins bonded to internally grooved aluminum tubing.
Coils are tested at the factory with an extensive refrigerant leak check.
Coils have copper sweat refrigerant connections.
Feature two sets of 3/4″ [14.1 mm] N.P.T. Condensate drain connections for ease of connection.
Chatleff metering device connections, at inlet and outlet of TXV or EEV and equalizer connections (TXV only).
Approved for system application with variety of WeatherKing outdoor units.
Condensate drain pan is constructed of high grade, heat resistant, corrosion free thermal-set material.
Compatible with Germicidal Light System (UV resistant)
Bi-Directional airflow eliminates the need to switch any internal components from horizontal left to right.
Unique drain pan design maximizes application flexibility and condensate removal.
N-Coil design maximizes performance and minimizes height required at installation.
Coils are AHRI certified for system application with a variety of WeatherKing outdoor units.

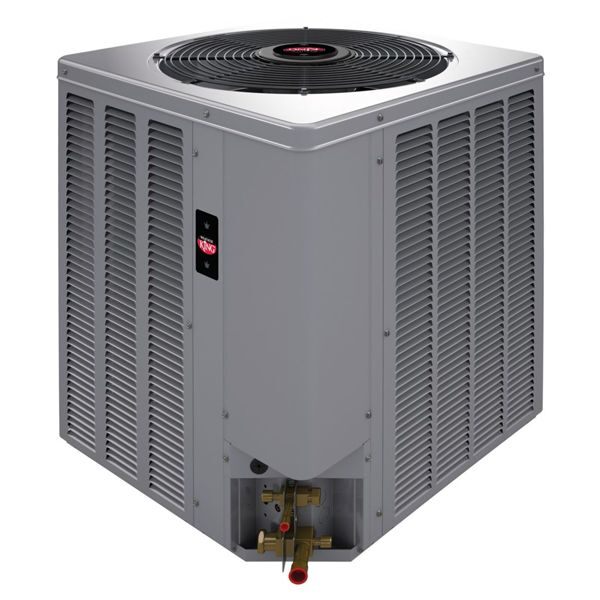

Weatherking AC condenser

Durable Construction
The WA14 is constructed with a sturdy louvered steel cabinet to protect the condensing coil fins from yard hazards, weather and corrosion, so you can be confident in the way it performs.
Quiet Operation
Several features contribute to quiet operation and better overall performance.
The motor mount/grille combination protects the fan motor from the elements and also reduces sound and vibration. The discharge pattern of the top grille provides minimum
air restriction, resulting in quiet fan operation. The WA14 also features a one-piece drawn and painted base pan. This pan elevates the coil off the pad helping minimize corrosion while also reducing sound.
Efficient Performance
The air conditioner uses an innovative wrap-around outdoor coil which allows improved airflow and heat transfer and reduces energy consumption.

Rheem offers a 10 year manufacture’s warranty when registered online at www.registermyunit.com

Product Includes(1) Weatherking by Rheem 2 Ton 14 SEER Air Conditioner Condenser (WA1424CJ1NA)(1)Weatherking by Rheem 2 Ton 14 In Wide Standard Efficiency Cased Coil (TCF2414STAMCA)
